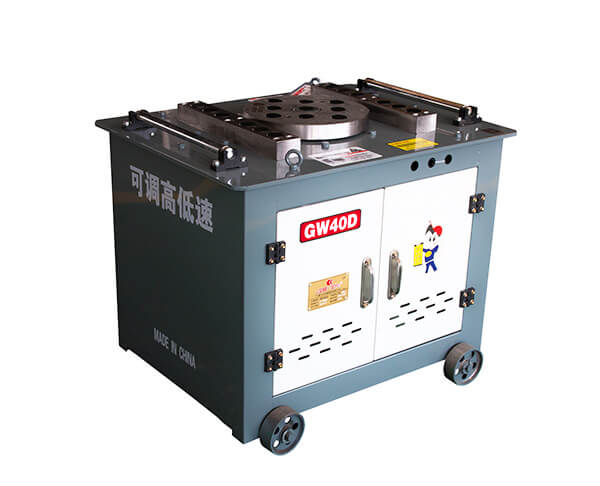

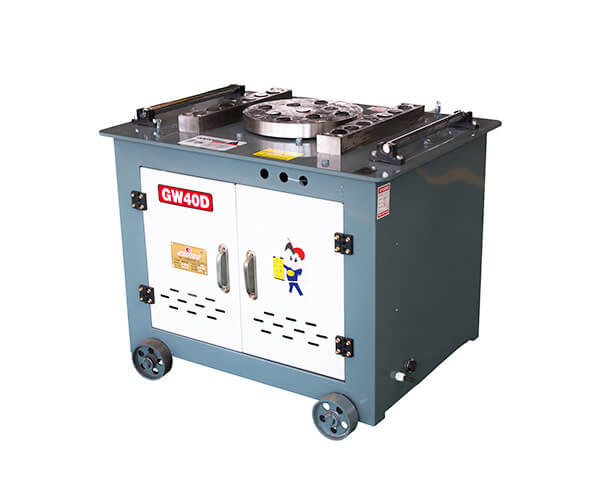

GW40D CNC Steel Bar Bending Machine
● Motor power: 4 kw
● Motor Speed: 1440 r./ min
● Dimension: 950 *980 *820 mm
● Weight: 270 KG
● Input Voltage: Three phase 380VAC 415VAC or customized
Parameter
| Type | A3 Round bar | II class Reinforced bar | Motor power | Motor speed | Disc diameter | Bending speed | Dimension | Weight | Input voltage | Color |
| GW40D CNC | Φ6-Φ40 mm | Φ6-Φ32 mm | 4 kw | 1440 r./ min | 340 mm | 5-10 r/min | 950 *980 *820 mm | 270 KG | Three phase 380VAC 415VAC or customized | Red, yellow, gray, blue or customized |
Description
-
CNC design, can set any bending angle. Reduce error, precise angle, improve work efficiency and make operation more convenient.
-
International standard motor electrical appliances, in line with international requirements, durable and safer to operate.
-
Solid disc strip, porous design, working with the center column, can achieve any bending angle.
-
Best-selling model, simple design, solid panel body. The stable internal structure supports the machine to run perfectly.
